How to Choose the Best Diesel Transfer Pump in 2026?

Choosing the right diesel transfer pump is a practical decision, not merely a price comparison. A farm tank, service truck, and construction site demand different flow rates, power sources, filtration, and safety controls. The wrong pump may fill slowly, overheat, or introduce water and sediment into expensive equipment.

The global fuel transfer pump market is projected to grow steadily through 2030, according to MarketsandMarkets’ Fuel Transfer Pumps Market report. Its analysis highlights rising demand from transportation, agriculture, mining, and emergency power applications. The International Energy Agency’s Oil 2024 report also shows that transport fuels remain central to global energy use, despite accelerating electrification. These trends make reliable fuel handling increasingly important.

“Pump selection must begin with the application, not the catalogue,” says Mark Chesser, a fuel-systems specialist associated with Franklin Electric. That advice sounds simple. It is often ignored. Before comparing models, measure the tank height, hose length, required litres per minute, and expected duty cycle. Check whether the pump handles diesel only, or approved fuel blends as well. Consider filtration quality, automatic shutoff, grounding, weather exposure, and service access.

A small detail matters.

A pump rated for high flow may perform poorly through a restrictive filter or narrow hose. Manufacturers also publish different test conditions, so advertised performance is not always directly comparable. This guide examines those limitations and explains how to choose a diesel transfer pump based on real operating conditions, dependable data, and long-term maintenance needs.

Table of Contents [Hide]

1 Diesel Transfer Pumps: Purpose, Types, and Core Operating Principles

2 Key Specifications to Compare Before Choosing a Pump

3 Matching Pump Capacity to Your Fuel Transfer Requirements

4 Safety, Durability, and Maintenance Features to Evaluate

5 How to Select the Right Diesel Transfer Pump in 2026

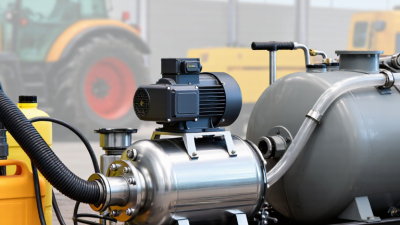

Diesel Transfer Pumps: Purpose, Types, and Core Operating Principles

How to Choose the Best Diesel Transfer Pump in 2026?

A diesel transfer pump moves fuel from a storage tank to a vehicle or machine. It is not an injection pump. Its job is steady, controlled delivery. The correct pump depends on flow rate, pressure, fuel viscosity, power supply, and daily workload. A small workshop may need a compact electric pump. A busy service yard may require a stronger unit with longer duty cycles. It starts with fit.

Common pump types include rotary vane, gear, diaphragm, and centrifugal designs. Rotary vane pumps provide consistent flow and often handle routine transfer work well. Gear pumps suit steady operation and thicker fluids. Diaphragm pumps can be useful where compressed air is available. Centrifugal pumps offer high flow, but they may need careful priming. Each type behaves differently under cold conditions. Check the technical data, not only the advertised flow figure.

Core operation is simple. The pump creates a pressure difference, draws diesel through the inlet, and pushes it toward the outlet. Inlet hose size, filter restriction, lift height, and air leaks can reduce real performance. I have seen installations lose flow because a narrow hose was treated as an afterthought. That mistake costs time. Choose compatible seals, a reliable filter, and suitable overpressure protection. Inspect connections regularly. No selection is perfect. Recheck performance after installation, because site conditions often expose assumptions.

How to Choose the Best Diesel Transfer Pump in 2026?

Diesel transfer pumps differ in capacity, power source, and operating method. The chart compares representative flow-rate ranges for common pump types used in fuel transfer applications.

Flow rates are typical industry ranges and can vary with pump size, hose length, fuel temperature, viscosity, inlet conditions, and filtration. Select a pump according to required flow, available power, duty cycle, and safety requirements.

Key Specifications to Compare Before Choosing a Pump

How to Choose the Best Diesel Transfer Pump in 2026?

Pump selection should begin with real operating conditions, not advertising claims. The Energy Institute Statistical Review 2024 recorded global oil demand at approximately 102 million barrels per day in 2023. That scale increases pressure on reliable fuel handling. Check the rated flow, working pressure, power source, and duty cycle. A pump rated at 60 litres per minute may deliver less through a long hose, dirty filter, or elevated tank. Measure the complete setup.

Fuel compatibility matters. Confirm the pump supports diesel viscosity, temperature, and storage conditions. Select filtration that protects engines without restricting flow. Meter accuracy is also important for fleet records and maintenance planning. Look for stated accuracy, calibration methods, and maximum operating hours. The International Organization of Legal Metrology highlights measurement reliability as a core requirement for fuel dispensers. Yet specifications can be misunderstood. A higher flow rate is not always better.

Tips: Compare performance at your actual hose length. Ask for test conditions, not only peak figures. Check thermal protection, grounding provisions, emergency shutoff access, and replacement-filter availability. A portable pump may suit occasional refueling, while a continuous-duty model better fits busy depots. I would still leave a safety margin. Real installations are rarely as clean as the catalogue test.

Matching Pump Capacity to Your Fuel Transfer Requirements

How to Choose the Best Diesel Transfer Pump in 2026?

Matching pump capacity to your fuel transfer requirements starts with time, volume, and resistance. A 500-liter tank moved in ten minutes requires about 50 liters per minute. Add a modest margin, perhaps 10–20%, for hose friction and cold fuel. Do not trust the advertised maximum flow alone. That figure often describes free-flow conditions, not real operation through a long hose, filter, and meter.

The U.S. Department of Energy’s Improving Pumping System Performance sourcebook reports that pumping systems can represent roughly 25% of industrial motor electricity use. This supports careful sizing, even for diesel transfer equipment. An oversized pump may finish quickly, but it can increase power demand, noise, foaming, and filter loading. A smaller pump may run continuously and create delays. Check the pump curve at your actual head pressure. Diesel viscosity also changes with temperature, so winter performance can differ noticeably. The estimate is useful, but never perfect.

Tips: Measure the hose length and internal diameter before selecting capacity. Record the required transfer time during a normal shift. For example, 55–60 L/min may suit a 500-liter transfer target, but only after checking system resistance. Ask for tested flow at working pressure, not catalogue peak flow. Review the manufacturer’s test method and maintenance data. A quick field trial can reveal restrictions that calculations miss.

Safety, Durability, and Maintenance Features to Evaluate

How to Choose the Best Diesel Transfer Pump in 2026?

Safety, Durability, and Maintenance Features to Evaluate

Choosing a diesel transfer pump should begin with safety, not maximum flow. Look for automatic shutoff protection and a reliable pressure-relief system. Grounding and bonding points help reduce static risks during fueling. Use hoses, nozzles, and filters rated for diesel service. Small details matter.

Durability depends on construction, workload, and storage conditions. A corrosion-resistant housing protects the pump in dusty or damp work areas. Thermal overload protection can prevent motor damage during long operating periods. Check the stated duty cycle, flow rate, and operating temperature range. Cold mornings expose weak seals quickly. I would not trust impressive specifications without clear test data.

Maintenance should be simple enough for a busy operator to follow. Choose a pump with accessible filters, replaceable seals, and visible inspection points. Keep spare gaskets and a clean filter nearby. Check hose cracks, loose fittings, and unusual vibration before each use. Record service dates, even when the pump seems fine. No pump is maintenance-free. Skipping one inspection can turn a minor leak into expensive downtime. A practical choice leaves room for human error, because real workshops are rarely perfect.

How to Choose the Best Diesel Transfer Pump in 2026? - Safety, Durability, and Maintenance Features to Evaluate

Evaluation Dimension	Recommended Benchmark for 2026	Why It Matters	Features to Check	Inspection or Maintenance Action
Fuel Compatibility	Designed specifically for diesel fuel and approved low-sulfur diesel blends used in the operating region.	Incorrect fuel compatibility can damage seals, hoses, valves, and pump components.	Fuel compatibility statement, chemical-resistant seals, diesel-rated hose and nozzle.	Confirm the allowable fuel specification before use and replace swollen, cracked, or hardened seals.
Flow Rate	Approximately 30–50 L/min for light-duty 12 V systems; 40–80 L/min for higher-capacity 24 V or AC systems.	The correct flow rate reduces refueling time without exceeding the tank, hose, filter, or nozzle capacity.	Rated flow at the intended hose length, nozzle type, fuel temperature, and lift height.	Measure actual flow periodically; a substantial decline may indicate a blocked filter, air leak, or worn pump.
Power Supply	12 V DC for vehicles and mobile tanks; 24 V DC for heavy equipment; 100–240 V AC only where a protected electrical supply is available.	Voltage mismatch can cause poor performance, overheating, electrical damage, or motor failure.	Clearly marked voltage, correct fuse or circuit breaker, suitable cable size, and secure terminals.	Inspect cables and connectors for heat damage, corrosion, loose joints, and insulation wear.
Maximum Lift and Head	Select a pump whose published suction lift and discharge head exceed the installation requirement, including hose losses.	Excessive lift or restriction can cause cavitation, reduced flow, overheating, and premature wear.	Performance curve, maximum suction lift, maximum head, and inlet-size information.	Keep the suction hose short, straight, and airtight; avoid unnecessary elbows and undersized fittings.
Duty Cycle	Continuous-duty rating for frequent transfer; intermittent-duty rating only for short, defined operating periods.	Using an intermittent pump continuously can overheat the motor and shorten service life.	Published duty-cycle limits, thermal protection, motor ventilation, and operating-temperature range.	Follow operating and cool-down intervals; stop the pump if the housing becomes unusually hot.
Overload and Thermal Protection	Automatic overload protection and a resettable thermal cut-out are preferred for electric transfer pumps.	Protection helps limit damage caused by stalled rotors, blocked lines, excessive current, or overheating.	Thermal cut-out, circuit protection, emergency stop, and clear fault-reset procedure.	Never bypass protective devices; investigate repeated trips before restarting the pump.
Ignition and Static Safety	Use equipment suitable for the classified hazardous area where applicable and provide proper bonding and grounding.	Diesel vapors and static discharge can create fire risks, especially during transfer and tank filling.	Appropriate electrical certification, grounding point, anti-static hose, and conductive nozzle where required.	Bond the tank and equipment before transfer; prohibit smoking, flames, and unapproved electrical devices nearby.
Automatic Shut-Off	An automatic shut-off nozzle is recommended for unattended or high-volume refueling operations.	It helps prevent overfilling, spills, environmental contamination, and unnecessary cleanup.	Reliable sensing mechanism, compatible nozzle size, drip control, and emergency stop access.	Test the nozzle regularly and do not secure the trigger in an open position.
Ingress Protection	For outdoor use, an enclosure rated at least IP55 is a practical baseline; higher protection may be needed in severe weather.	Protection against dust and water improves reliability in mobile, agricultural, construction, and fleet applications.	Verified IP rating, sealed switches, protected cable glands, and corrosion-resistant enclosure.	Keep covers closed, clean mud and dust from ventilation areas, and inspect seals for damage.
Construction Materials	Use corrosion-resistant aluminum, coated steel, stainless steel, or other materials rated for diesel service.	Material quality affects resistance to vibration, moisture, impact, and long-term fuel exposure.	Robust mounting feet, protected motor housing, quality fasteners, and reinforced inlet and outlet ports.	Check for rust, dents, loose mounts, damaged threads, and signs of fuel seepage.
Filtration	Install a serviceable inlet strainer and, where required, a downstream fuel filter with a suitable micron rating.	Filtration protects the pump and receiving engine from dirt, rust particles, and water contamination.	Transparent bowl where appropriate, drain provision, replaceable element, and accessible filter housing.	Drain accumulated water and replace filter elements according to contamination level and service intervals.
Hose and Fittings	Use diesel-rated, anti-static hoses with an internal diameter typically around 19–25 mm for common transfer systems.	Correct hose sizing limits pressure loss, static buildup, kinking, and premature failure.	Crush-resistant hose, secure clamps, compatible seals, swivel joints, and drip-resistant couplings.	Inspect before each use for cuts, abrasion, flattening, leaks, and loose connections.
Dry-Run Tolerance	Prefer a pump with published dry-run protection or a clearly defined maximum dry-running time.	Running without fuel can damage internal seals, vanes, gears, and motor components.	Dry-run sensor, automatic shut-off, self-priming design, and accessible replacement seal kit.	Stop the pump immediately when the tank is empty and prime the system before restarting.
Noise and Vibration	Choose a stable mounting design with vibration isolation; lower-noise operation is preferable near personnel and residential areas.	Excessive vibration can loosen fittings, damage wiring, increase noise, and indicate mechanical wear.	Rubber isolation mounts, balanced motor, rigid base, and published noise data when available.	Tighten mounting hardware and investigate sudden changes in noise or vibration.
Metering and Monitoring	A calibrated mechanical or electronic flow meter is useful when fuel usage, inventory, or fleet accountability must be tracked.	Accurate measurement helps identify leaks, abnormal consumption, and maintenance needs.	Resettable display, suitable flow range, calibration procedure, and protection from moisture and impact.	Verify meter accuracy at planned intervals and record transfer volume and operating hours.
Serviceability	Select a design with accessible filters, replaceable seals, standard fittings, and available maintenance documentation.	Easy service reduces downtime and lowers the total cost of ownership.	Parts list, exploded diagrams, service intervals, common replacement kits, and clear troubleshooting steps.	Create a maintenance log covering filter changes, inspections, repairs, and operating hours.
Environmental Conditions	Verify the operating temperature, altitude, humidity, dust, and weather exposure limits for the installation site.	Temperature and contamination can affect viscosity, motor cooling, sealing, and electrical reliability.	Published temperature range, corrosion protection, weather-resistant enclosure, and suitable ventilation.	Store the equipment under cover when possible and protect it from standing water and excessive dust.
Documentation and Compliance	Require traceable technical documentation, electrical safety information, installation instructions, and applicable local approvals.	Proper documentation supports safe installation, legal compliance, operator training, and future maintenance.	Technical data sheet, user manual, wiring diagram, safety warnings, conformity information, and warranty terms.	Keep records on site and train operators to follow the documented inspection and emergency procedures.

Selection note: The benchmarks above are general engineering guidelines rather than guaranteed ratings. Always confirm the pump’s published performance curve, electrical specifications, fuel compatibility, installation requirements, and applicable safety regulations before purchase or installation.

How to Select the Right Diesel Transfer Pump in 2026

Selecting the right diesel transfer pump starts with the actual job, not the advertised maximum flow rate. Measure the distance, lifting height, tank size, and expected transfer time. A pump delivering 40 litres per minute may be excessive for a small maintenance tank. It may also overload a weak power circuit. Check the required voltage, duty cycle, inlet size, and fuel compatibility before comparing models.

Filtration deserves careful attention. Diesel can carry water, rust, or fine particles from storage tanks. Choose a pump with an accessible filter and a clear service procedure. A reliable hose should resist abrasion, cold temperatures, and fuel exposure. The nozzle needs a comfortable grip and a dependable automatic shutoff. Small details matter.

Safety is not optional.

Look for grounding provisions, leak-resistant connections, thermal protection, and clear emergency controls. Confirm that the equipment meets applicable local electrical, environmental, and workplace requirements.

In practical maintenance work, many failures begin with neglected seals or an undersized cable. I once underestimated cable length during a site assessment, and the voltage drop reduced pump performance noticeably. That mistake changed my checklist: calculate the full cable run, inspect storage conditions, and leave room for future filtration upgrades.

The cheapest pump can become expensive when it runs slowly, overheats, or requires frequent repairs. Reliability should be judged through service access, documented testing, replacement parts, and realistic operating limits.
